An angiography catheter is a specialized medical device used to inject and infuse contrast media and/or fluid in coronary angiography to visualize blood vessels and diagnose various vascular conditions.
Soft tip reduces potential for vessel trauma
Double braided stainless steel for 1:1 torque control
Maximum pressure:1200psi/ 84 bar
Maximum Guide wire:0.038"/ 0.97mm

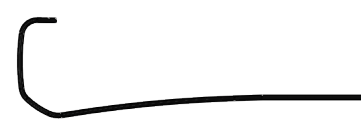

Shape | Shape Name | Fr Size | Ref. NO. | Length (cm) | Side Hole | Shape Illustration |
TIG | Radial TIG | 4F | ACTIG14F1100 | 100 | 1 | |
Radial TIG | 5F | ACTIG15F1100 | 100 | 1 | ||
Radial TIG | 6F | ACTIG16F1100 | 100 | 1 | ||
Radial TIG | 7F | ACTIG17F1100 | 100 | 1 | ||
Pigtail | Straight Pigtail | 5F | ACPIGS5F1110 | 110 | 6 | |
Straight Pigtail | 6F | ACPIGS6F1110 | 110 | 5 | ||
Straight Pigtail with 20 marked band | 5F | ACPIGS5F20M10H1100 | 100 | 10 | ||
145° Angled Pigtail | 5F | ACPIGA5F1110 | 110 | 6 | ||
145° Angled Pigtail | 6F | ACPIGA6F1110 | 110 | 6 | ||
Judkins Left | JL3.5 | 5F | ACJL355F1100 | 100 | / | |
JL3.5 | 6F | ACJL356F1100 | 100 | / | ||
JL4.0 | 5F | ACJL405F1100 | 100 | / | ||
JL4.0 | 6F | ACJL406F1100 | 100 | / | ||
JL4.5 | 5F | ACJL455F1100 | 100 | / | ||
JL4.5 | 6F | ACJL456F1100 | 100 | / | ||
JL5.0 | 5F | ACJL505F1100 | 100 | / | ||
JL5.0 | 6F | ACJL506F1100 | 100 | / | ||
Judkins Right | JR3.5 | 5F | ACJR355F1100 | 100 | / | |
JR3.5 | 6F | ACJR356F1100 | 100 | / | ||
JR4.0 | 5F | ACJR405F1100 | 100 | / | ||
JR4.0 | 6F | ACJR406F1100 | 100 | / | ||
JR5.0 | 5F | ACJR505F1100 | 100 | / | ||
JR5.0 | 6F | ACJR506F1100 | 100 | / | ||
JR6.0 | 5F | ACJR605F1100 | 100 | / | ||
JR6.0 | 6F | ACJR606F1100 | 100 | / | ||
Amplatz Left | AL 1 | 5F | ACAL15F1100 | 100 | / | |
AL 1 | 6F | ACAL16F1100 | 100 | / | ||
AL 2 | 5F | ACAL25F1100 | 100 | / | ||
AL 2 | 6F | ACAL26F1100 | 100 | / | ||
AL 3 | 5F | ACAL35F1100 | 100 | / | ||
AL 3 | 6F | ACAL36F1100 | 100 | / | ||
Amplatz Right | AR 1 | 5F | ACAR15F1100 | 100 | / | |
AR 1 | 6F | ACAR16F1100 | 100 | / | ||
AR 2 | 5F | ACAR25F1100 | 100 | / | ||
AR 2 | 6F | ACAR26F1100 | 100 | / | ||
AR 3 | 5F | ACAR35F1100 | 100 | / | ||
AR 3 | 6F | ACAR36F1100 | 100 | / | ||
COBRA | COBRA | 5F | ACCOBRA15F0065 | 65 | / | |
COBRA | 6F | ACCOBRA16F0065 | 65 | / |
